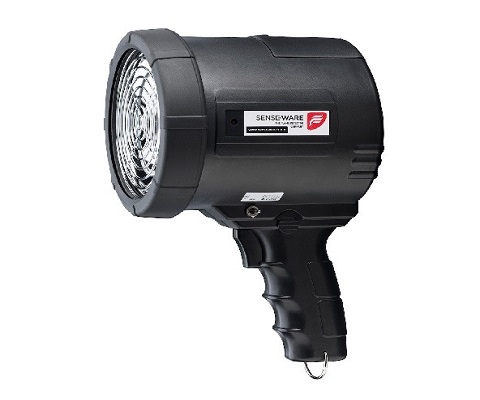

Sense-Ware T-229/4P Flame Detector Tester / Test Lamp

AED 6,930.00

SKU S0025 Categories ,
Get Quote


The Sense-WARE T-229/4P flame detector test lamp activates UV, IR and UV/IR flame detectors which detect in
the 185-235 nm UV and 4.4 µ IR frequency ranges. For UV only detectors the maximum distance is up to 8 meters
(26 ft) in the continuous mode. The test range for IR and UV/IR detectors is up to 4 meters (13 ft).
Most IR Flame detectors have an extra alarm criterion; analyzing the flicker frequency of a fire. In order to simulate
the flame flicker, the lamp needs to be pulse operated. For this, the test lamp T-229/4P can be put into the pulse
mode by means of a selection switch on the left side of the test lamp. The lamp then emits pulsed light with a
frequency of approx. 2 Hz. After the alarm delay time the IR or UV/IR flame detector will activate.


  • Adapter (charger): 100-240 Vac, 500 mA switching with plugs for US, EU, GB and AU
  • Test range UV flame detectors: up to 8 m (26 ft) in continue mode, up to 4 m (13 ft) in pulse mode
  • Test range IR and UV/IR flame detectors: up to 4 m (13 ft)
  • Battery: Sealed Lead Acid battery, 12 Vdc / 2.7 Ah Lamp H3, 12 Vdc / 100 W
  • Use 10-15 minutes under optimal conditions and continuous use
